Military / 2019 敦睦遠航訓練支隊 - 基隆港開放活動

March, 2019

在今年3月海軍敦睦遠航訓練支隊進行國內航訓，停泊高雄、安平、馬公、台中、基隆、蘇澳及花蓮七大港口，並開放民眾登艦參觀，今年敦睦艦隊由油彈補給艦磐石號、康定級巡防艦武昌艦及成功級巡防艦田單艦組成

於停泊基隆港開放參觀兩日雖都天候不佳，但參訪民眾仍絡繹不絕，甚至造成基隆市區交通打結，許多北部學校亦藉由此次敦睦艦隊參觀活動進行校外參訪，透過參訪活動亦進行全民國防教育的好時機


In March 2019, Dunmu Fleet in R.O.C Navy implemented the domestic cruise and parked at seven port as Kaohsiung, Anping, Ma Gong, Taichung, Keelung, Suao and Hualien to let citizen visit on broad. In this year, Dunmu Fleet is composed of Panshi Fast Combat Support Ship, Chengkung Class Frigate - Tian Dan Ship and Kangding Class Frigate - Wuchang Ship.

Even though the weather in the visit days of two in Keelung port almost was rainy, it also still had many people visit and caused the traffic jam in urban. Moreover, lots of high schools in north of Taiwan took place the outdoor teaching activity to carried out the national defense education in this chance.

/
磐石號油彈補給艦，隸屬於海軍一五一艦隊，母港為左營軍港，為目前我國海軍排水量最大的軍艦，亦是
此次敦睦艦隊之旗艦

於船上的展示館中，陳展我國現役海軍軍艦模型、國造武器專區、台灣精品及未來國造軍艦擬定模型

Panshi Fast Combat Support Ship, assigned to Republic of China Navy 151th fleet, whose the home

 port is Zuoying Port. Panshi Ship is the flagship of Dunmu Fleet.

The display area on the ship show the models of R.O.C Navy ship,  indigenous weapons, Taiwan excellent

product and the models of future ship in R.O.C Navy.

/
康定級飛彈巡防艦，隸屬於海軍一二四艦隊，母港為左營軍港，為我國向法國採購自拉法葉級巡防艦

康定級為我國海軍首款匿蹤外型之軍艦，艦上配備MK-75快砲、海欉樹防空飛彈、雄風二型反艦飛彈、
L/70機砲、MK-15方陣快砲、MK-32型水面船艦魚雷管及達蓋MK-2誘餌發射系統，並可搭配S-70C型
機進行反潛作業

Kangding Class Frigate, assigned to Republic of China Navy 124th fleet, whose the home port is

Zuoying Port. Kangding Class Frigate whose the origin is La Fayette Class from Fance was purchased by

Ministry of National Defense.

Kangding Class Frigate is the first Radar-Absorbing exterior ship in R.O.C Navy, and is equipped with

MK-75 caliber Gun, Sea Chaparral Missile, Hsiung Feng II Anti-Ship Missile, 40mm/L70 gun, Phalanx

Close-In Weapon System, MK-32 Surface Vessel Torpedo Tubes and Dagaie Mk2 Chaff Launcher.

And also cooperate the anti-submarine activity with S-70C helicopter.

/
成功級飛彈巡防艦，隸屬於海軍一六四艦隊，母港為澎湖馬公的測天島軍港，成功級飛彈巡防艦為美
國派里級巡防艦的修改版，由台灣造船公司所承造

成功級巡防艦配備MK-13飛彈發射器，可發射標準一型飛彈及魚叉飛彈

並配備雄風二型飛彈、雄風三型飛彈、L/70機砲、MK-15方陣快砲及MK-32型水面船艦魚雷管

Chengkung Class Frigate, assigned to Republic of China Navy 164th fleet, whose the home port is

Observatory Island Port in Penghu. Chengkung Class Frigate is the modification of U.S Oliver

Hazard Perry Class, therefore Chengkung Class Frigate was manufactured by China Ship Building

Corporation(now call "CSBC Corporation Taiwan").

There are  lots of weapon systems including the Hsiung Feng II Anti-Ship Missile, Hsiung Feng III

Anti-Ship Missile, 40mm/L70 Gun, Phalanx Close-In Weapon System and MK-32 Surface Vessel

Torpedo Tubes on the frigate.

/
基隆級飛彈驅逐艦，隸屬於海軍一六八艦隊，母港為蘇澳港，為我國向美方採購之紀德級驅逐艦

基隆級驅逐艦搭載MK-45艦砲、標準二型防空飛彈、阿斯洛克反潛飛彈、魚叉反艦飛彈、MK-15方陣
快砲及MK-32型水面船艦魚雷管，並可透過戰術資料鏈進行指揮作戰及與友軍的資訊共享

Keelung Class Destroyer, assigned to  Republic of China Navy 168th fleet, whose the home port is Su'ao.

Keelung Class Destroyer whose the origin is Kidd Class from U.S Navy was purchased.

Keelung Class Destroyer is equipped with the MK-45 Gun, Standard Missile 2, RUR-5

Anti-Submarine Rocket, AGM-84 Harpoon Anti-Ship Missile, Phalanx Close-In Weapon System and MK-32 Surface

Vessel Torpedo Tubes, and can use the Data Link to coordinate the tactic and share

the intelligence with friendly troops.

/
沱江級巡邏艦，隸屬於海軍一三一艦隊，母港為基隆港，為我國自研自製的穿浪型雙船體巡防艦，可
搭載雄風三型飛彈、雄風二型飛彈、MK-75快砲、MK-15方陣快砲、MK-32型水面船艦魚雷管、M2重
機槍及T74排用機槍

Tuochiang Class Corvette, assigned to Republic of China Navy 161st fleet, whose the home port is
Keelung Port. Tuochiang Class Corvette is indigenous ship of wave-piercing catamaran, and is equiped
the Hsiung Feng III Anti-Ship Missile, Hsiung Feng II Anti-Ship Missile, MK-75 caliber gun, Phalanx
Close-In Weapon System, MK-32 Surface Vessel Torpedo Tubes, M2 Machine Gun and T74
General Purpose
Machine Gun.

/
磐石號油彈補給艦，擔負起中華民國海軍之油彈補給及人道救援任務，並擁有完整的野戰醫院設施

Panshi Fast Combat Support Ship, takes on the logistic mission and humanity mission in R.O.C Navy,

and has a complete field hospital on the ship.

/
永靖級獵雷艦，隸屬於海軍一九二艦隊，母港為左營軍港，為我國向美方採購之鶚級獵雷艦，我國目
前擁有兩艘該級之獵雷艦，分別為永靖艦及永安艦

Yongjing Class Coastal Minehunter, assigned to Republic of China Navy 192sd fleet, whose the

home port is Zuoyong Port. And Yongjing Class whose the origin is U.S Navy Osprey-class coastal

minehunter was purchased by R.O.C Navy, there are two ships in R.O.C navy, one is Yongjing Ship,

the other one is Yongan Ship.

/
劍龍級潛艦，隸屬於海軍二五六艦隊，母港為左營軍港，為我國於西元1980年向荷蘭採購的柴電潛艦，
為劍魚級潛艦的改良版

劍龍級潛艦配備SUT魚雷、MK-48型魚雷及潛射型魚叉飛彈之武器

Chienlung Class Submarine, assigned to Republic of China Navy 256th fleet, whose the

home port is

Zuoyong Port. Chienlung Class Submarine which is the modification of Zwaardvis Class Submarine

was purchased from Nederland.

Chienlung Class Submarine is equipped with SUT Torpedo, MK-48 Torpedo and UGM-84 Harpoon Missile.

/
單兵戰鬥裝備，模型身穿為海軍陸戰隊數位虎斑迷彩服，頭戴國造防護頭盔，配備一把T91步槍

Combat Equipment of Soldier, the model is worm the digital tabby camouflage clothing and protective
helmet and equiped with T91 Rifle.

/
旋翼式無人載具火炮前觀系統，由軍備局研製的旋翼型飛行無人載具，可輔助迫砲部隊觀測前方敵軍
所在位置並進行座標標定，將相關數據回傳後方部隊作為迫砲仰角及方位調整之依據

UAV-forward Observation System, which was developed by Armament Bureau, Ministry of National Defense.

That has a main function that can observe the situation of enemy to locate the position. Therefore, the data

which is the reference to determine the angle and direction is sent to mortar troop by link.

/
雄風三型反艦飛彈，由中科院所研製之反艦飛彈，可由陸上機動發射車及海上船艦發射該型反艦飛彈
，並於多次試射演訓中命中目標

Hsiung Feng III Anti-Ship Missile, which was developed by NCSIST, thus, the missile can be launched from
the launch truck on the land and ship. Moreover, Hsiung Feng missile has record to hit the targt maney time
in exercise so far.

/
天弓三型武器系統，中科院研製之防空飛彈系統，為連級操作武器系統，由一輛電源車、一輛飛彈發
射車及一輛雷達車所組成，並可同時接戰多目標威脅

Tien Kung III Air Defense Weapon System, which was developed by NCSIST. There is a weapon system

that is operated by company, and consist of a electric power truck, a launch truck and a radar truck.

Tien Kung System can engage the different target in the same time.

/
銳鳶無人機，目前於海軍海上戰術偵蒐大隊服役，為中山科學研究院航空研究所研製，參與各項演訓
任務，並曾於東部外海偵獲解放軍的電子偵查船

Albatross UAV, assigned to R.O.C.Naval Maritime Tactical Reconnaissance Group, and was developed

by ASRD, NCSIST. Albatross UAV has taken part in many exercises so far, otherwise, it even had

detected the reconnaissance ship of People's Liberation Army Navy.

/
經國號戰機，由空軍航發中心所研製
，為我國首架自研自製之戰機

未來的AT-5高級教練機亦是以經國號
戰機之基礎進行研製

F-CK-1 Fighter, which was developed by
AIDC,and also it is the first indigenous
fighter.

AT-5 Advanced Jet Trainer is developed on
the base of F-CK-1.

/
國造武器展示區，陳列紅隼反裝甲火箭、雄風三型反艦飛彈、雷霆兩千多管火箭系統、天弓三型防空
飛彈系統及經國號戰機之模型，展現我國國防工業科技發展之水平

Indigenous Weapons Display Area, which has lots of models of weapons made by Taiwan manufacturer

in here, such as Kestrel Anti-Armor Rocket, Hsiung Feng III Anti-ship Missile, Thunderbolt-2000 Multiple Rocket

System, Tien Kung III Missile and F-CK-1 fighter, to show the high quality of defense technology industry.

/
海龍號無人潛艇，為雷虎科技公司所研發之產品，該項產品曾榮獲台灣精品金質獎之殊榮

海龍號無人潛艇可搭配聲納設備及高清攝影機，進行水下作業

Seadragom XLR, which is developed by Thunder Tiger, and even had been awarded the Gold Mental of

Taiwan Excellence Award.

Seadragom XLR can implement the diving working with the sonar and high revolution video camera.

/
磐石軍艦機庫，在敦睦艦隊的開放活動中，機庫內陳展船上消防等相關設備，並供民眾合影留念

The hangar of Panshi Ship, where is the place to display the equipment about the fire safety and the

others and to let the citizens to take pictures.

/
磐石軍艦甲板，該甲板可供CH-47及CH-53等重型直升機降落，並可見於機庫上方兩側配備兩座40砲及
中間一座MK-15方陣快砲

The Deck of Panshi Ship, which can support the loading of CH-47 and CH-53, and is armed with two

40mm guns on both sides and one MK-15 Phalanx Close-In Weapon System in the middle on the hangar.

/
右側為成功級巡防艦 - 田單艦，左側為康定級巡防艦 - 武昌艦

In the right side, It is Chengkung Class Frigate - Tian Dan Ship；
the other side, It is Kangding Class Frigate - Wuchang Ship

/
成功級巡防艦
田單軍艦
PFG-1110

Cheng Kung Class Frigate
Tian Dan Ship
PFG-110

/
田單艦之舷側

The broadside of Tian Dan Ship

/

MK-13飛彈發射器，為一種單臂發射系統，其可將該飛射系統分為兩部分，一為甲板上之發射器，另

一為甲板下之彈藥倉

MK-13飛彈發射器可發射標準一型防空飛彈及魚叉飛彈

MK 13 Guided Missile Launching System, which is a kind of single-arm missile launcher, can

separate the two parts, at first, one part on the deck is the launcher, and the other part under the deck

is the missile module.

/
76公厘艦砲，由義大利Oto Melara公司所研製生產，並廣受各國海軍所青睞，我國康定級巡防艦、成功
級巡防艦及沱江級巡邏艦皆安裝該艦砲，於國際上，法國追風級護衛艦、新加坡可畏級巡防艦及美國派
里級巡防艦亦皆安裝此款艦砲

OTO Melara 76 mm, which was developed by Oto Melara Company from Italia, and it is favor in Navy of

nations. Moreover, 76 mm Gun is installed on Kangding Class Frigate, Chengkung Class Frigate and Tuochiang

Class Corvette.

Also, There are many navy ship is armed with this weapon in the world, including Gowind Class Patrol Vessel from

France, Formidable Class Frigate from Singapore and Oliver Hazard Perry Class Frigate from U.S.

/

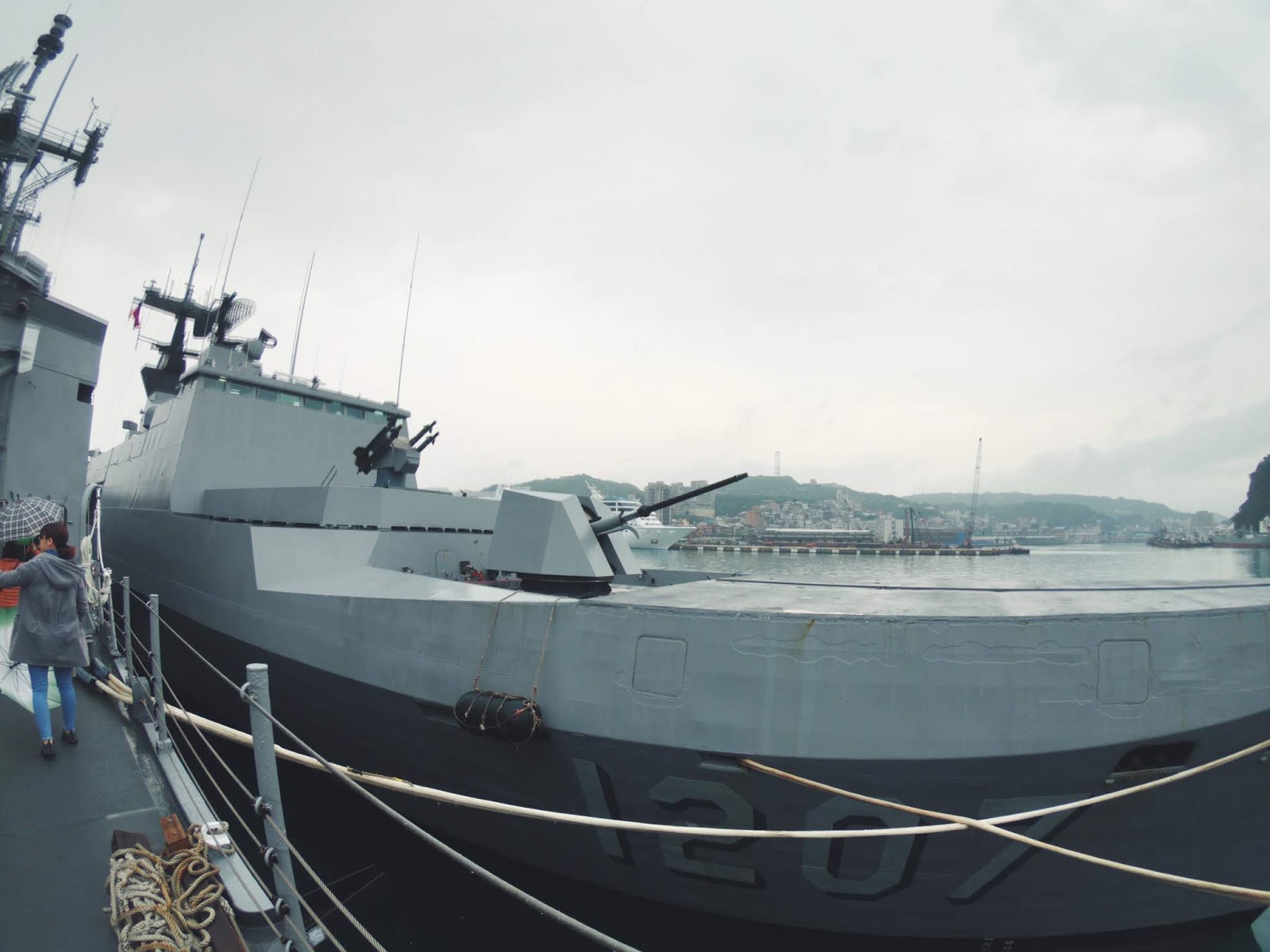

76公厘艦砲及海欉樹飛彈，配備於康定級巡防艦前方

康定級巡防艦的76公厘艦砲之砲塔外殼已更換成OTO設計的匿蹤砲塔外殼

OTO Melara 76 mm and MIM-72 Chaparral, which is armed the front of Kangding Class Frigate.

All of turret shell of OTO Melara 76 mm on the Kangding Class Frigate are replaced by turret shell of

stealth technology from OTO Melara.

/
MK-32型水面船艦魚雷管，配備於各國多款主力艦艇之魚雷發射裝置，包含美國之維吉尼亞級巡洋艦、
丹麥阿布薩隆級支援艦及日本愛宕級護衛艦皆配備此裝備

MK-32 Surface Vessel Torpedo Tubes, which is equipped on main vessels in countries including U.S

Navy Virginia Class Cruiser, Royal Danish Navy Absalon Class Support Ship and JMSDF

JDS Atago.

/
親切的海軍官兵為民眾介紹MK-32水面船艦魚雷發射管之諸元性能

Kindly Navy solider introduce the performance of MK-32 Surface Vessel Torpedo Tubes to people.

/

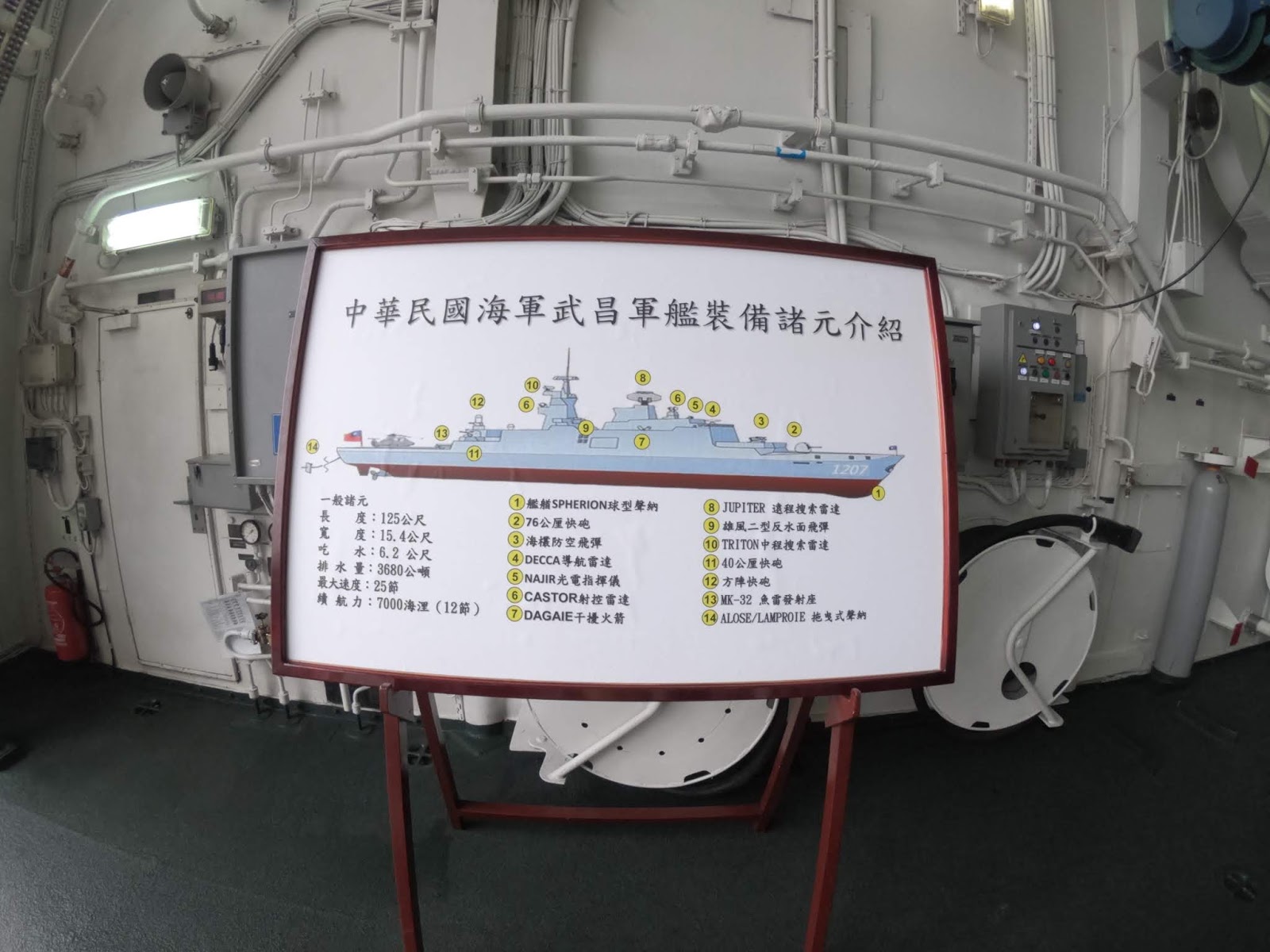

武昌艦之裝備簡介，標示了艦上各項聲納、雷達及武器位置

Introduce to equipment position on Wuchang Ship, point the position of the sonar, radar and weapon system.

/
武昌艦之船艙內部

Cabin of Wuchang Ship

/
成功級艦之甲板，可搭配S-70C直升機進行水下偵蒐作業

The deck of Chengkung Class Frigate, where S-70C helicopter land on.

Chengkung Class Frigate can cooperate with S-70C to enhance the efficiency on anti-submarine.
